Communication Error Alarm


Alarm Data mgt
Last Post by t.mathew 8 years ago
4 Posts
3 Users
0 Likes
33 Views
RSS
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Hello all,

How can we trigger an alarm bit, if communication to a device is failed? For example if the communication cable to a PLC is disconnected an alarm bit should turn ON. Thank you for the support.

BR

Tijo


Posted : 16/08/2018 11:54 am
BO
 BO
(@b-olombelarcinfo-com)
Posts: 196
Reputable Member


Hi Tijo,

There are system variable which give you information about the communication state :

System. for the network state.
System.. for communication state with a plc.

Hope it helps.

BR


Posted : 16/08/2018 12:22 pm
e.mahaut
 e.mahaut
(@e-mahautarcinfo-com)
Posts: 270
Member Moderator


Hello Tijo,

To complete the Brice's answer:

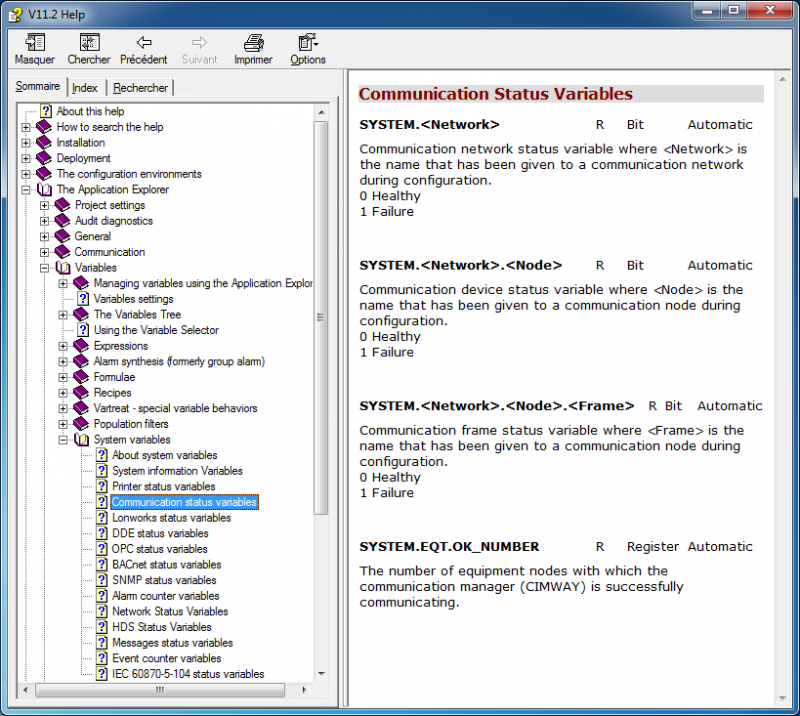

4297=641 CommunictionStatusVariables

You can then either use them or make an expression on variable (or SCADA Basic program) to set an internal alarm

BR
Edouard


Posted : 16/08/2018 12:38 pm
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Thank you Brice
Thank you Edouard


Posted : 16/08/2018 12:53 pm
