Hello,
Our customer had a modbus TCP/IP communication problem with PcVue.Their device is a gateway which can only accept max 5 tcp connections.

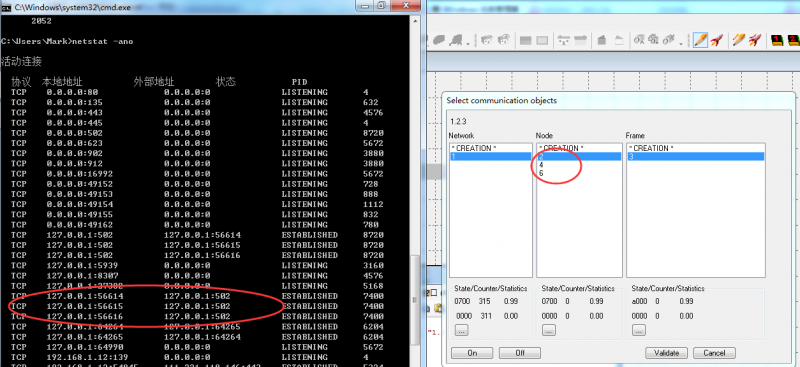

But every node in PcVue will launches a TCP connection. Please see the screenshots I made on my PC.
Sorry,, why I cannot upload pictures?
Who knows how to solve this issue?
Mark
Posted : 05/02/2015 12:18 pm

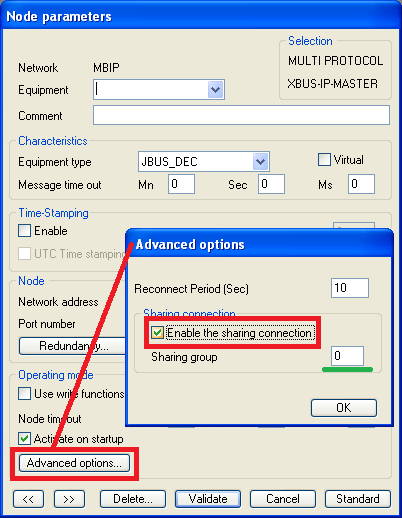

I'm not sure but I think that you should use the adavnce option "sharing connevtion" in the Equipment configuration.
Posted : 05/02/2015 2:05 pm
Topic starter
Thank you Romain.
I tried as your advice, several nodes can communicate with same TCP connection when enable Sharing connection. Thanks again.
Mark
Posted : 05/02/2015 2:28 pm
You're welcome
Posted : 05/02/2015 2:35 pm
Hi,
Romain is right. The solution is using Sharing connection option and set one or many sharing group
Too late... I saw Mark answer
Posted : 05/02/2015 2:35 pm
Sorry,, why I cannot upload pictures?
Which web browser are you using? I also not able to upload images with Firefox. Consequently I am using Chrome to access the forum.
Posted : 05/02/2015 7:01 pm
Topic starter
Yes,I also use Firefox.
I just tried with IE, the pictures are uploaded successfully.
Thank you.
Mark
