Error in Text properties


HMI
Last Post by t.mathew 8 years ago
5 Posts
3 Users
0 Likes
30 Views
RSS
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Hi,

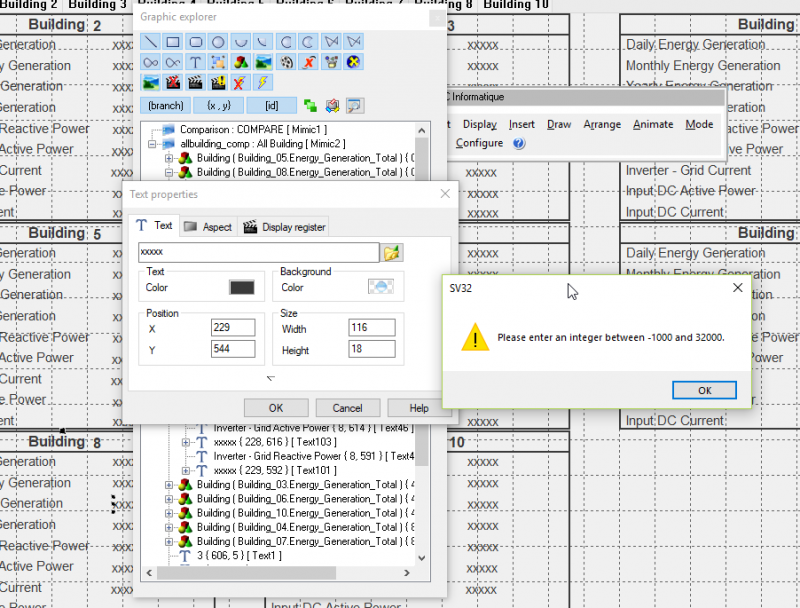

I got an error like this, What will be the possibility.

4166=604 2018 05 2818 12 34 PcVue D3Solar 28 05 18

br

Tijo


Posted : 28/05/2018 7:20 pm
e.mahaut
 e.mahaut
(@e-mahautarcinfo-com)
Posts: 270
Member Moderator


Hi Tijo,

If the mimic is in ASCII format, there is one way to solve the issue: you have to edit it and search for the shape having an issue, probably on Anchor X or Y.
There should be a value quite important in the first 6 fields (usually 5th or 6th)

If the mimic is in binary format, just save it in ASCII format and check if the problem is still here.
If yes, proceed as described above.

BR
Edouard


Posted : 28/05/2018 11:19 pm
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Thank you Edouard, Its worked


Posted : 29/05/2018 10:21 am
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator


Hi Tijo,

Could you tell us what field got the issue?
If you still have the corrupted mimic please send it.

Nico


Posted : 30/05/2018 2:18 pm
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Hi Nico

Instead of 0 the value was previously -2545. I changed to 0 as a trial and error method and it worked.

4175=605 2018 05 3110 09 16 C ARCInformatique PcVue11.2 Usr D3 solar W allbuilding comp Notepad

BR

Tijo


Posted : 31/05/2018 11:20 am
