How not to display '?' when communcation is down


HMI
Last Post by Giulia Magnesa 11 years ago
6 Posts
3 Users
0 Likes
31 Views
RSS
fl.chen
 fl.chen
(@fl-chenarcinfo-com)
Posts: 170
Reputable Member
Topic starter


Hello,

Who knows how to display the last valid value the register when communcation is down.Normally it displays '?'.

Thanks

Br,
Mark


Posted : 02/04/2015 7:46 am
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator



Posted : 02/04/2015 8:33 am
fl.chen
 fl.chen
(@fl-chenarcinfo-com)
Posts: 170
Reputable Member
Topic starter


Thanks, my eyes must have some problems.


Posted : 02/04/2015 9:05 am
 Giulia Magnesa
(@admin_doc72)
Posts: 493
Member Admin

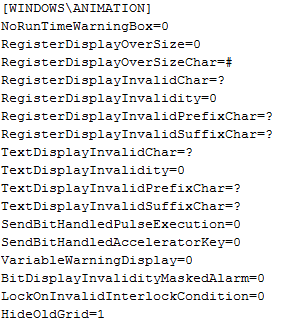

By the way, if you just want to display a character different than '?' you are able to modify some settings in the options.dat file:

2255=321 options dat animation settings

I do not know if this feature is official. However, the options.dat of the SvHMI_Demo includes those settings.


Posted : 07/04/2015 12:48 pm
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator

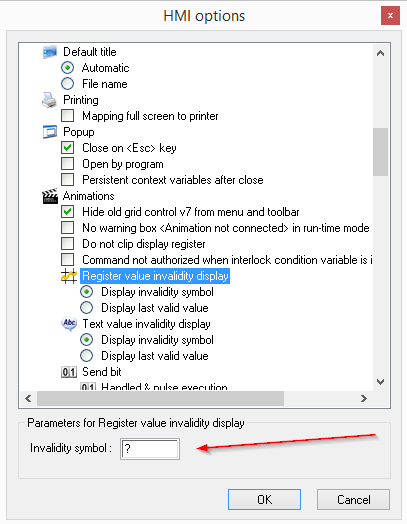

hehe I should make the complete screenshot 🙂

2256=323 NSDisplay2

Posted : 07/04/2015 1:31 pm
 Giulia Magnesa
(@admin_doc72)
Posts: 493
Member Admin


Oh, okay.
I didn't know that it has become sooo official meanwhile...


Posted : 07/04/2015 1:33 pm
