Dear all,

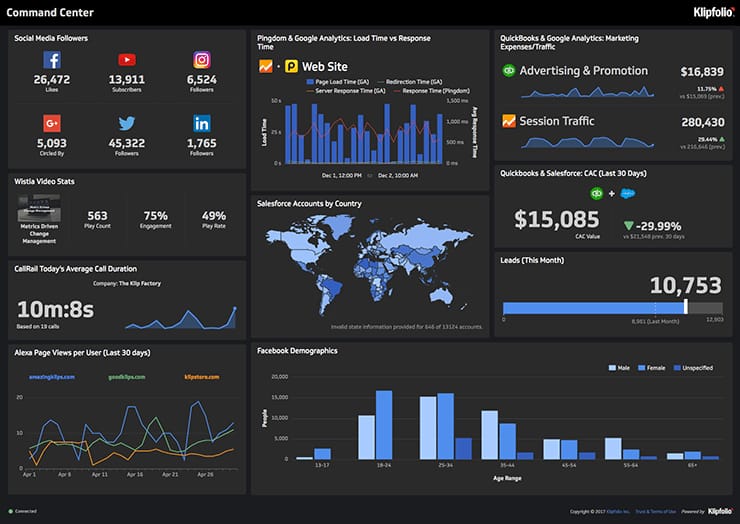

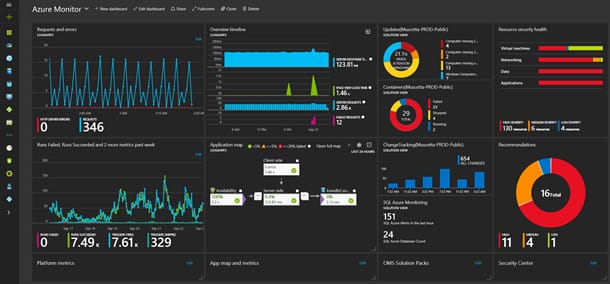

Please suggest me some methods to create a nice KPI graphics something like below.

4214=608 8c64e30b b30f 466a a53c c83d1cc25f3b
4214=609 84e9b2ce 8687 4214 afc5 ad2513b59737

I tried with Microsoft Report Builder. Any other suggestions? Thank you


Posted : 14/06/2018 10:27 am
b.lepeuple
 b.lepeuple
(@b-lepeuplearcinfo-com)
Posts: 149
Estimable Member


Microsoft PowerBI is probably your new friend 😉


Posted : 14/06/2018 2:38 pm
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator


You should be able doing most of these charts using Dream Report

Nico


Posted : 18/06/2018 7:14 am
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Is it possible to display the DR graphics in PcVue mimic?

Tijo


Posted : 18/06/2018 1:21 pm
LM
 LM
(@l-micaudarcinfo-com)
Posts: 383
Member Admin


Hi Tijo,

It is possible to display DreamReport Web Portal into a PcVue mimic thanks to the Web Browser ActiveX. If a pdf viewer is installed you will be able to open a report into this WebBrowser.
In any case the refresh period of this kind of report is not so quick. It is more 5 or 10 seconds than 1 second.

Also to do that you will need to modify Windows Registry to make WebBrowser work as Internet Explorer 10 or 11 because by default it is a very old Internet Explorer and it is not compatible with DreamReport web portal. Explanations availble in our forum here:
https://support.pcvuesolutions.com/index.php?option=com_kunena&view=topic&catid=13&id=1247&Itemid=501#3846


Posted : 18/06/2018 1:43 pm
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter


Hi Ludovic,

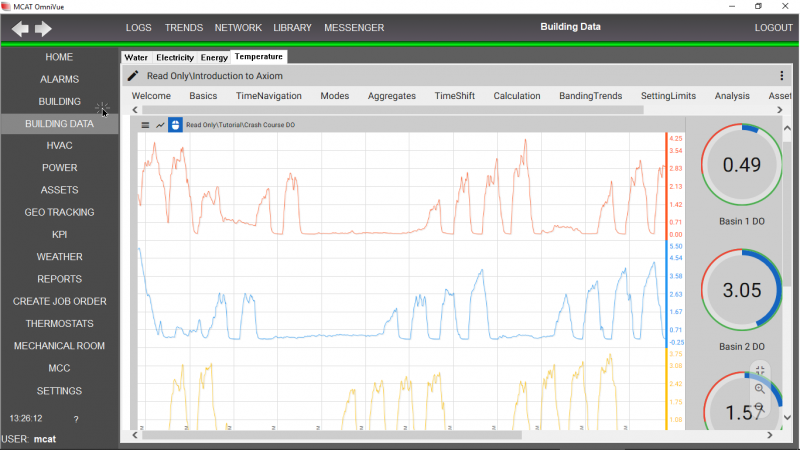

I tried for IE11 and it works good.

4221=613 2018 06 1813 26 12

But the SQL reporting service showing error??

4221=612 2018 06 1813 26 50

Tijo


Posted : 18/06/2018 2:33 pm
LM
 LM
(@l-micaudarcinfo-com)
Posts: 383
Member Admin


Try the Silent mode:

4222=614 SilentMode

Posted : 18/06/2018 5:27 pm
t.mathew
 t.mathew
(@t-mathewarcinfo-com)
Posts: 64
Estimable Member
Topic starter

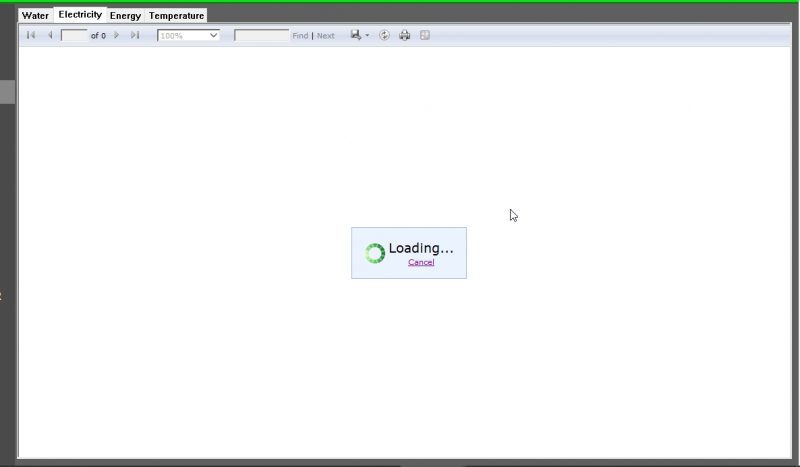

Yes I tried it but it shows loading for long time.

4223=615 2018 06 1816 31 30

Posted : 18/06/2018 5:32 pm
