Hello,

Now one of our customer met two problems of WebVue:

1.Graph distortion in WebVue.
2.Text can be in vertical in PcVue,but in WebVue, it becomes horizontal.

see attachments.

Anyone met these two issues?

Thanks in advance.

BRs
Mark

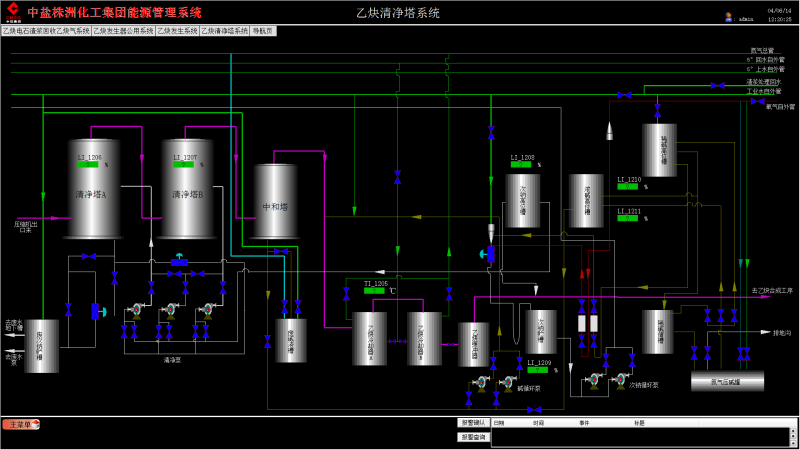

1613=252 pcvue

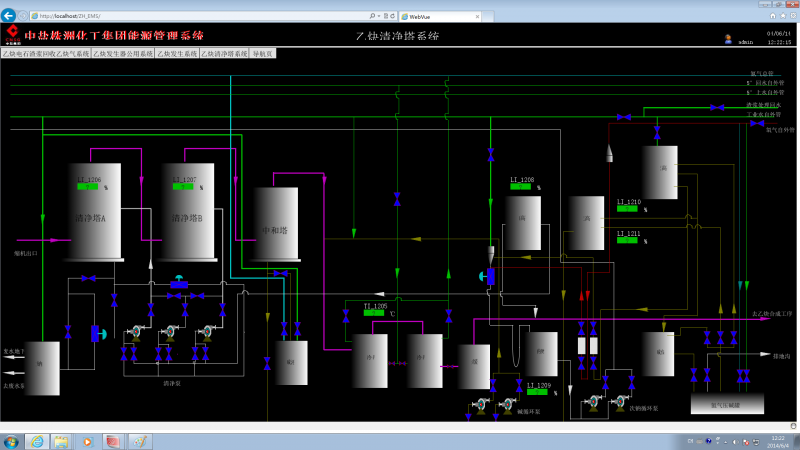

1613=253 webvue

Posted : 04/06/2014 4:02 pm
 Giulia Magnesa
(@admin_doc72)
Posts: 493
Member Admin


Hi Mark.

Point 1:
What exactly do you mean with "graph distortion"?
Do you mean that the gradient color of the tanks does not take into account more than two keypoints? This error should have already been fixed in PcVue 11.0. Which PcVue version are you using?

Point 2:
Text rotation is not supported in WebVue. That is a known limitation. Please refer to the chapter "WebServices > WebVue > Using WebVue > Designing Mimics for WebVue > Functionality available from WebVue" in the online help.


Posted : 04/06/2014 4:46 pm
e.mahaut
 e.mahaut
(@e-mahautarcinfo-com)
Posts: 270
Member Moderator


Hello Mark,

In my opinion, the "distortion" will depend on 2 parameters :

1/

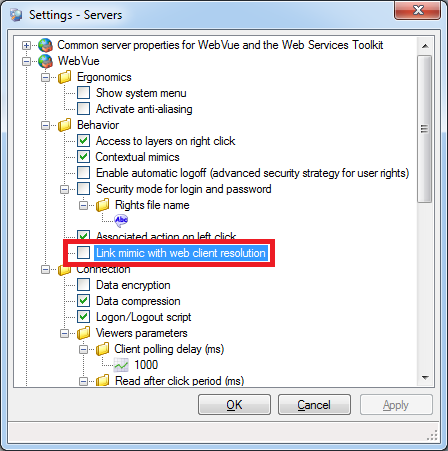

1616=254 LinkMimicWebVue

2/

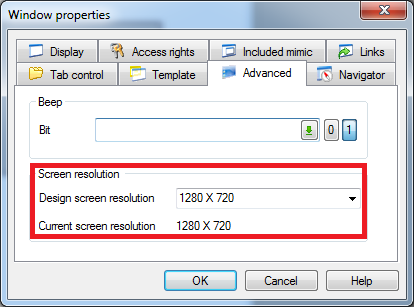

1616=255 MimicAdvanced

I guess the first option is checked but could you confirm you have the same resolution in the mimic advanced properties for design and current?

BR
Edouard


Posted : 04/06/2014 4:53 pm
fl.chen
 fl.chen
(@fl-chenarcinfo-com)
Posts: 170
Reputable Member
Topic starter


Thanks,I tried with PcVue 11.0, and it ok now.

The PcVue version of customer using is 10.0 SP1 16041,and what I use is 10.0 SP1 16057.

BRs
Mark


Posted : 05/06/2014 12:09 pm
fl.chen
 fl.chen
(@fl-chenarcinfo-com)
Posts: 170
Reputable Member
Topic starter


Thanks for your suggestion, I tried,but cannot solve it.


Posted : 05/06/2014 12:11 pm
