TIP - Alarm history and Timestamp quality


Alarm Data mgt
Last Post by b.lepeuple 9 years ago
3 Posts
3 Users
0 Likes
33 Views
RSS
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator
Topic starter


Estimados Colegas,

You know that in an alarm viewer you can display the alarm ‘history”, the different timestamps when the alarm was On, Acknowledged, Off..

As long as these timestamps does not exist we replace the digit by a “?”, and that can be quite confusing because “?” means invalid in animation, and now with the IEC drivers as 104 and 61580 we have really the notion of quality for timestamp.

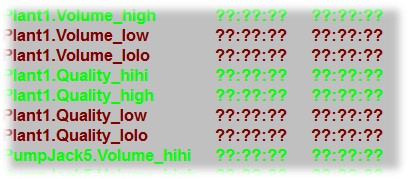

3193=428 TIP AlarmhistoryandTimestampquality 1

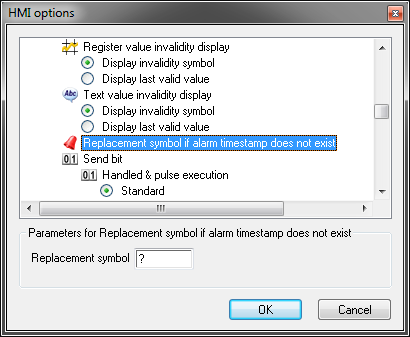

So in latest 11.1update(and future 11.2) you can now configure what symbol will be displayed when the expected timestamp does not exist.

3193=429 TIP AlarmhistoryandTimestampquality 2

Be the change you want to see in the (only girl in the) world

From Niko Demirdjian


Posted : 06/10/2016 9:48 am
LM
 LM
(@l-micaudarcinfo-com)
Posts: 383
Member Admin


Great but ugly because the extra characters are still displayed (/ and : )

Here is a list of result with different replacement characters. Personaly I prefer underscore but I am not convinced 100% 🙁

1. dash

3403=468 alarmlistdash

2. degree

3403=469 alarmlistdegre

3. dot

3403=470 alarmlistdot

4. nothing

3403=471 alarmlistempty

5. space

3403=472 alarmlistspace

6. star

3403=473 alarmliststars

7. underscore

3403=474 alarmlistunderscore

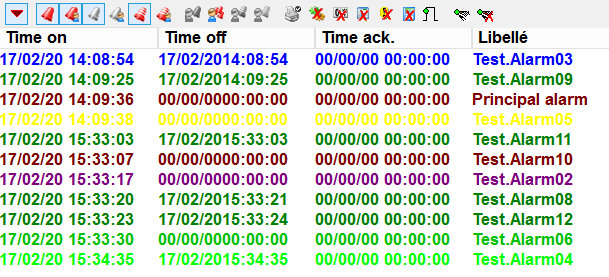

8. zero

3403=475 alarmlistzero

Posted : 20/02/2017 8:54 pm
b.lepeuple
 b.lepeuple
(@b-lepeuplearcinfo-com)
Posts: 149
Estimable Member


I can only agree with Ludo...


Posted : 20/02/2017 9:10 pm
