Hello

I got a customer that they failed to use PcVue to connnect to their OPC Gateway.

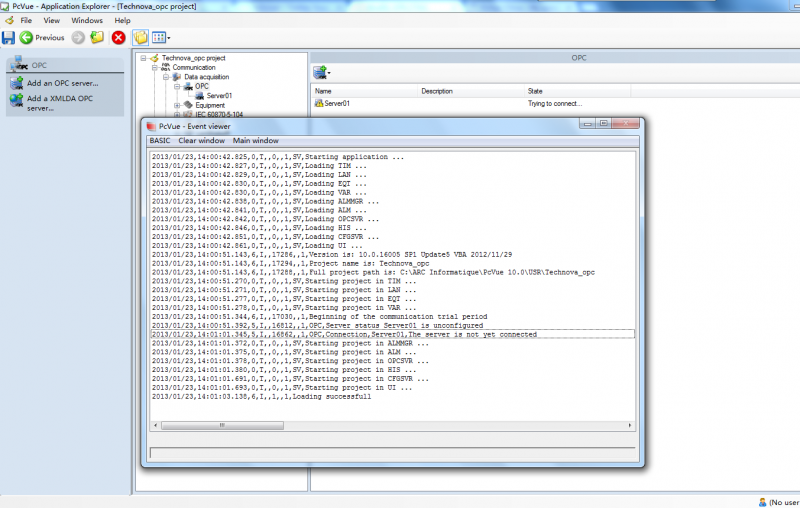

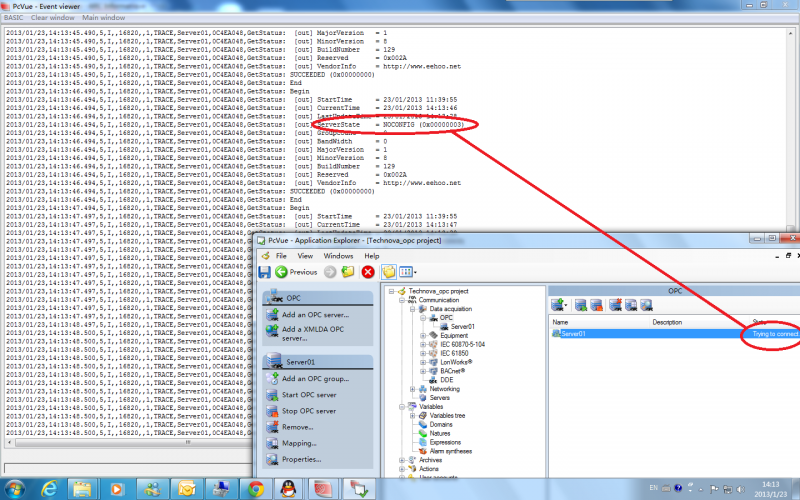

I reproduced it in office, and the status of the OPC server is "Trying to connect", and in the event viewer, it shows "The status of the server is unconfigured..."

386=63 1 2013 01 23
386=64 2 2013 01 23

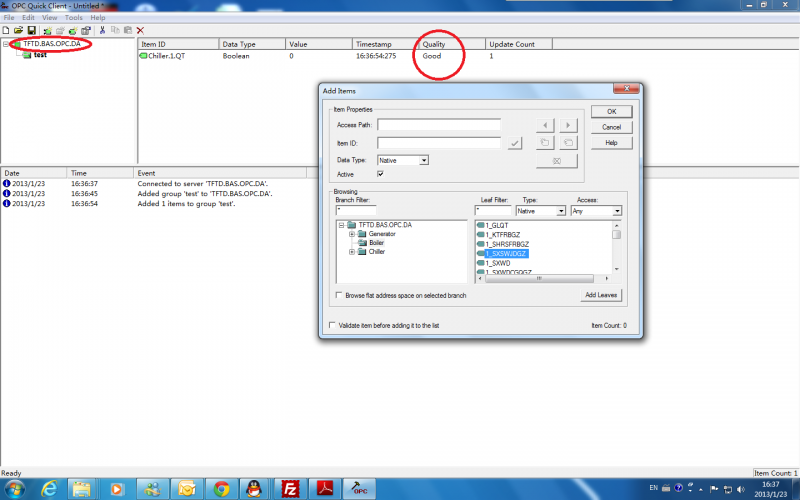

But, we can use Quick Client(Kepware) or Matrikon's OPC client to connect to the OPC gateway.

386=65 3 2013 01 23

Does somebody have an idea?

Thanks!


Posted : 23/01/2013 2:47 pm
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator


Did you configure the complete PcVue traces on the Server01 object?


Posted : 23/01/2013 5:04 pm
 sq.zheng@pcvue.com.cn
(@sq.zheng@pcvue.com.cn)
Posts: 0
New Member Guest


Yes, but the most of them are the Begin and End. It seems PcVue was polling the connection request to the sever all the time.

389=66-trace4.txt

Posted : 24/01/2013 7:18 am
n.kunzer
 n.kunzer
(@n-kunzerarcinfo-com)
Posts: 1236
Member Moderator


Shuquan, in this trace file we can see that you configured the traces after start-up.
I suggest you show us the log file after start-up but when the traces are already activated.
We need more traces when PcVue tries to connect first.


Posted : 25/01/2013 6:31 pm
