Hi,
Here we are cooperating with Wago China for a demo project of DALI Lighting System. We're supposed to make the SCADA and the energy consumption statistics(Note: Wago can only provide the luminance of the lighting, we need to calculate the power ourselves). The problem we got now is the energy consumption diagram.

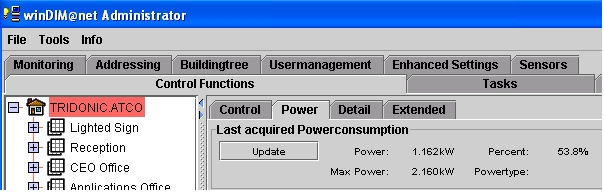

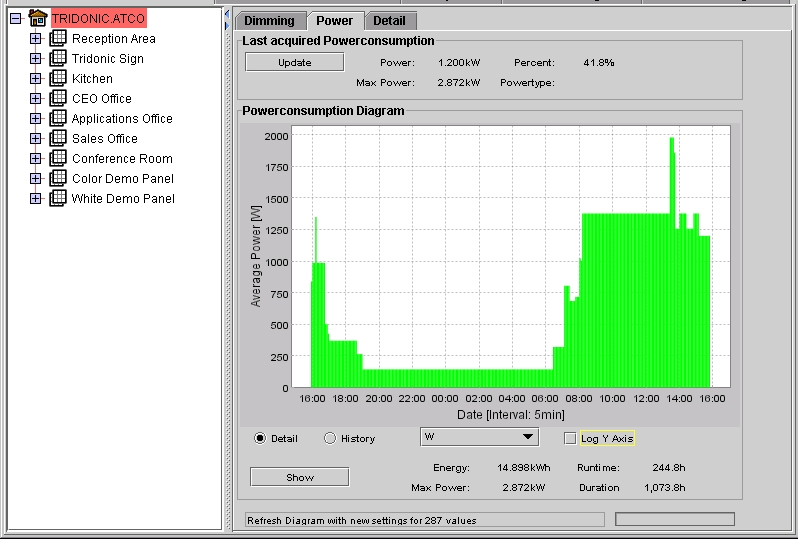

Here are some diagrams from TRIDONIC DALI Lighting System:
As I know, DR could not make it as above screenshots which end user can get the bar diagram on demand. I tried with some active x, and failed. Do you know some other reporting tools can do it?
Thanks in advance!
Posted : 21/05/2014 10:48 am
Shuquan, are you sure DR can't do it?
Did you check with their support?
Posted : 21/05/2014 11:39 am
No, I did not check with their support.
When I said it cannot, I mean: with DR, we can only open the PDF/EXCEL reports outside the RMC(Runtime management console).
If considering to integrate the reports into PcVue(user can select one Light to check the the power consumption within PcVue), we could not make it as friendly as the TRIDONIC even using the web client of DR.
Posted : 21/05/2014 12:11 pm
Cannot make a treeview in a mimic which is opening a pdf?
Posted : 21/05/2014 2:24 pm
Strange! Sometimes i could not logon to the KB...I failed yesterday.

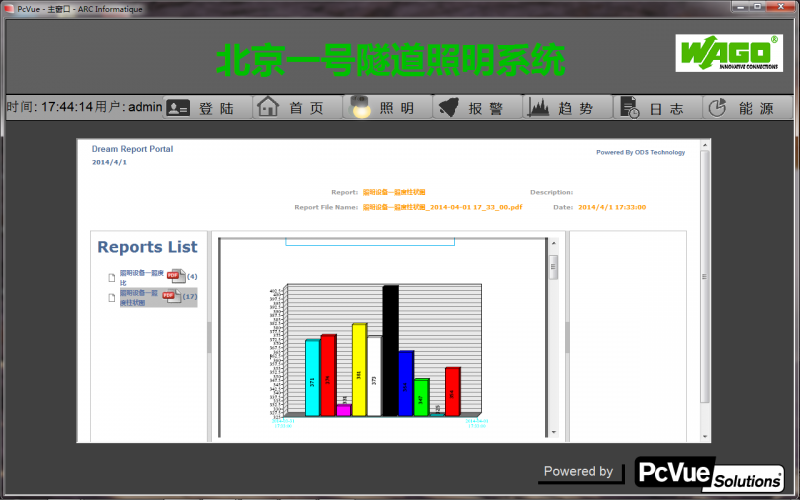

If integrate the webclient into PcVue, we got this screenshot: not so friendly as TRIDONIC DALI Lighting System.

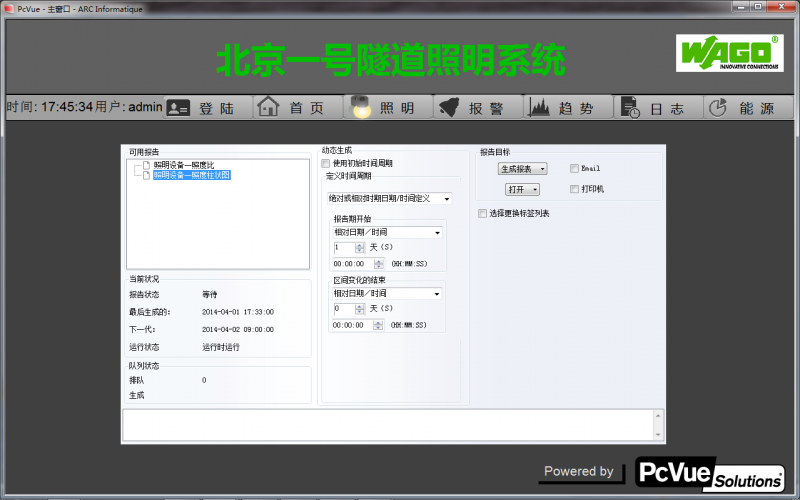

if we integrate the DR RTM active X into PcVue, we got this screenshot: we'll open the report with adobe.
Posted : 23/05/2014 8:55 am
