Display historic alarms in the trend viewer


HMI
Last Post by Anonymous 13 years ago
2 Posts
1 Users
0 Likes
15 Views
RSS
 sq.zheng@pcvue.com.cn
(@sq.zheng@pcvue.com.cn)
Posts: 0
New Member Guest


Hello experts:

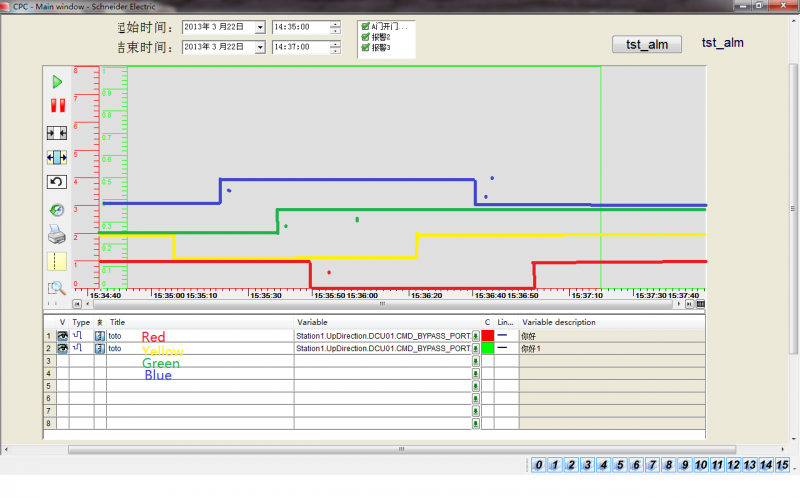

I got the following requirement from the customer: he wants to diplay the historical alarms dynamiclly, and the alarms in the trend viewer should as following screenshot: alarm 1 "Red" with range 0-1, alarm 2 "Yellow" with range 1-2, alarm 3 "Green" with range 2-3, alarm 4 "Blue" with range 3-4 and so on, each alarm/trace has its own range then they will not be overlapping each other.

604=81 Historicalarm

Here, we failed to use the scada basic trend with Ymin/Ymax to make it. Do you have some idea on it?

Thanks.


Posted : 01/04/2013 12:59 pm
 sq.zheng@pcvue.com.cn
(@sq.zheng@pcvue.com.cn)
Posts: 61
Trusted Member Guest


Hello,

it is solved with the Ymin/Ymax...:)


Posted : 02/04/2013 12:52 pm
