Hi,

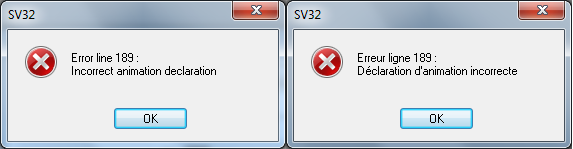

If you get the following error message while opening a mimic with (for exemple) a 11.2 Release:

Incorrect animation declaration
Déclaration d'animation incorrecte (in French)

3759=513 IncorrectAnimationDeclaration

Here is what you should know

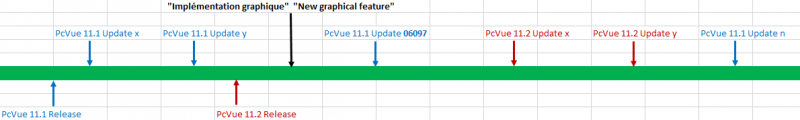

3759=514 PPTINI ADV Graph

There are 2 solutions :
- Use the last Update
- Delete manually the tags "ADV,..." and "PPTINI,..." (Mimics in ASCII)


Posted : 13/09/2017 2:53 pm
RT
 RT
(@r-toussaintarcinfo-com)
Posts: 38
Eminent Member


Hi Edouard,
Do you think, that it is pertinent to write a KB article which describes the Keywords added in a mimic saved in ASCII, in relation to PcVue version ?
For example, according to your post, we know that

ADV, ... (from 11.2 upd xxx)
PPTINI, ... (from 11.2 upd xxx)

RT


Posted : 13/09/2017 5:18 pm
e.mahaut
 e.mahaut
(@e-mahautarcinfo-com)
Posts: 270
Member Moderator
Topic starter


Hi Raphaël,

It would be pertinent to do so but the trouble is who should do it (Dev, referent, ...) and who would maintain it? :huh:

Edouard

PS :
ADV, ... (from 11.1 Upd xxx and 11.2 Upd yyy)
PPTINI, ... (from 11.1 Upd xxx and 11.2 Upd yyy)


Posted : 13/09/2017 6:05 pm
